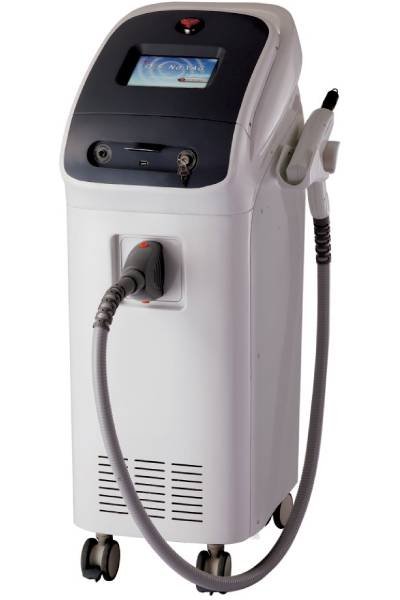

Q SWITCHED ND-YAG LASER
TECHNICAL SPECIFICATIONS
Laser Type Q-SwitchedNdYag
Wave length1064nm/532nm(Optional1320nm)
Pulse energy1064nmmax.2000mj,532nmmax.1000 mj
Frequency 1-10Hz
Pulse width 10ns
Spot Size 1-5mm
Display 7”TouchScreenLCD
Cooling system Water+Windcooling
Electrical requirements 230VAC,50Hz
Dimensions440x370x1050mm
Weight34Kgs
Q SWITCHED ND-YAG LASER
Q Switched Laser technology has been greatly improved the ability to treat melanocytic lesions and tattoos with the rapidly pulsed Quality Q-Switched Nd-Yag laser.The laser treatment of pigmented lesions and tattoos are based on principle of selective photo thermolysis.
1064nm laser can penetrate into deep layer of the skin, it is easily absorbed by blue and black color pigment.
532nm laser can penetrate into epidermis.Therefore,it is easily absorbed by the green,pink,purple and brown color pigment in epidermis.
1320nm: A moppet tip used along with carbon peel for skin rejuvenation.
APPLICATIONS:
Fractional :
- Tattoo Removal
- Birth Marks
- Freckles
- Vascular lesions
- Pigmented Nevus
- Nevus of Ota
- Seborrheic Keratosis
- Epidermal Melasma
- Telangiectasia
