Introduction
The Square Series comprises microcomputer-controlled whole-body UV therapy units. Available models, lamp configurations, power requirements and physical parameters are listed below.

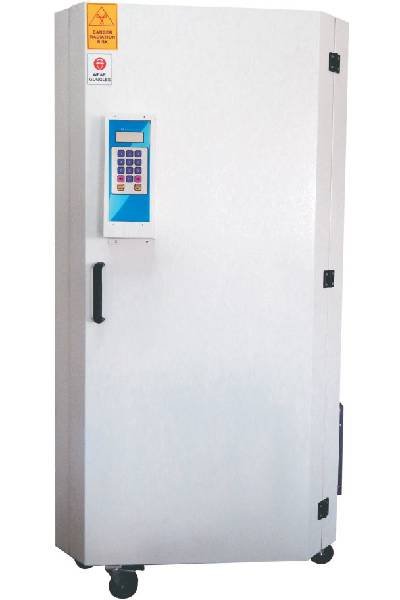

Square Shape Whole Body UV Therapy Unit
Technical Specifications
| Model | Number of Lamps | Power Required in kVA |
|---|---|---|
| Square 16A | 16 UVA | 4 |
| Square 24A | 24 UVA | 6 |
| Square 36A | 36 UVA | 10 |
| Square 16NB | 16 NBUVB | 4 |
| Square 24NB | 24 NBUVB | 6 |
| Square 36NB | 36 NBUVB | 10 |
| Square 12+12ANB | 12 UVA+ 12 NBUVB | 4 |
| Square 18+18ANB | 18 UVA+ 18 NBUVB | 10 |
Physical Parameters
| Model | Depth | Width (m) | Height | Weight |
|---|---|---|---|---|
| Square 16A | 1 | 1 | 1.95 | 140 |
| Square 24A | 1 | 1 | 1.95 | 200 |
| Square 36A | 1 | 1 | 1.95 | 250 |
| Square 16NB | 1 | 1 | 1.95 | 140 |
| Square 24NB | 1 | 1 | 1.95 | 200 |
| Square 36NB | 1 | 1 | 1.95 | 200 |
| Square 12+12ANB | 1 | 1 | 1.95 | 200 |
| Square 18+18ANB | 1 | 1 | 1.95 | 200 |
Skin disorders like Psoriasis,Vitiligo,Lichen Planus, Atopic Dermatitis, Mycosis Fungoides,etc.,treated successfully withour devices.
Unit is available with UVA/NBUVB Lamps or combination of UVA+ NBUVB Lamps.
