Introduction
The CO2 Fractional Laser is designed for professional fractional skin-resurfacing procedures. It delivers laser energy in small treatment zones. Available operating details and physical parameters are listed below.

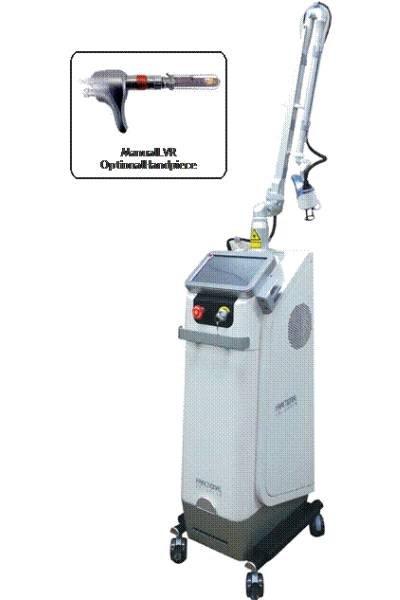

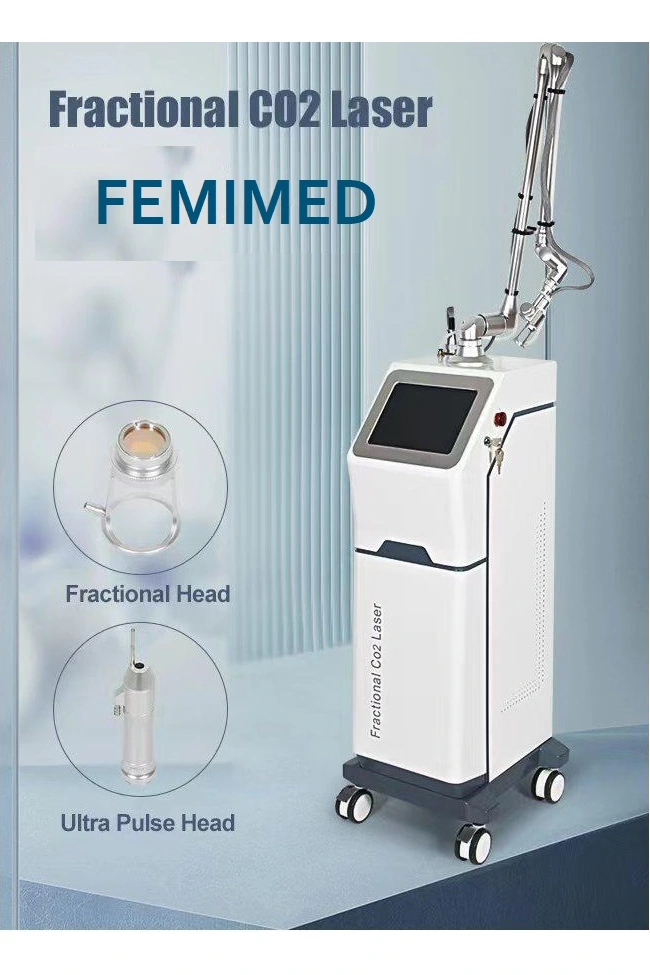

RF CO2 FRACTIONAL LASER
Technical Specifications
Laser TypeRF Excited Co2 Laser
Wave length10600 nm
Operating ModeFractional,UltraPulse,SuperPulseandCWmodePower-on-Tissue
ScanAreaMin 5 x 5mm & Max20x20mm
Pulse DurationCW-2-30ms NormalPulse-5-20ms SuperPulse-1.0-4.0msUltraPulse-90-900µs
Depth LevelUp to 5 step
Repeat TimeOff,2-500ms
Beam shapeSquare,Circle,HexagonandTriangle
Beam PatternArray,Grid,Random
AimingBeam655nm,5mW(adjustable)withspotsize
Display10.4” LCD Touch Screen
Hz Dimensions350x360x1120mm
Physical Parameters
Electrical Requirement230V AC, 50
Weight40kg(Approx)
Dividing Laser Beam very finely (smaller than hair) and irradiating to Epidermis fractionally makes many small thermal lesions to the skin structure without any side effect and serious damage. Through this process skin will be recovered rapidly and rejuvenates naturally.
Applications
- Skin Tightening
- Acne Scars
- Warts/Moles
- Skin Resurfacing
- Large Pores
- Freckles
- Wrinkles
- Stretch Marks
