Introduction

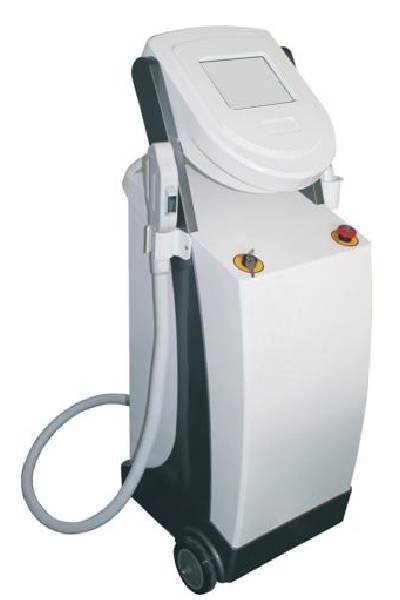

The Multiplatform System combines three treatment technologies in one device. It uses fixed handpieces. Available functions, operating specifications and physical parameters are listed below.
MULTI PLATFORM SYSTEM
Technical Specifications
MediumElight+RF+Q-Switched Nd-YagLaser
E light wavelength430nm,480nm,530nm,560nm,590nm
Spot size15x50mm²
Elight power1-50J/cm2
Pulse duration1-10ms
Laser typeQ-Switched Nd-Yag
Laser treatment head532nm/1064nm/1320nm(moppethead)
Laser Power300-1500mj
Laser frequency1-6Hz
Bipolar RF probes diameter20mm/28mm/35mm
Frequency10MHz
RF discharge interval1-4s
Dimension1070x570x370mm
Cooling systemSemiconductor+Wind+Water
RFenergy01-25J
Physical Parameters
Electrical requirement230VAC,50Hz
Weight40kg (Approx)
Non ablative bipolar RF for cellulite
reduction,wrinkle removal and skin tightening.
E-light(IPL With RF) for hair removal ,skin rejuvention,acne and vascular lesions.
Q-switched Nd-Yag laser with three wavelengths 532,1064 and 1320nm for all color tattoos,pigmentation and freckles etc.,
