Introduction
The Long Pulse Nd:YAG Laser uses a fibre-optic beam-delivery system for professional aesthetic procedures. It includes a cryo air-cooling system. Available operating settings and physical parameters are listed below.

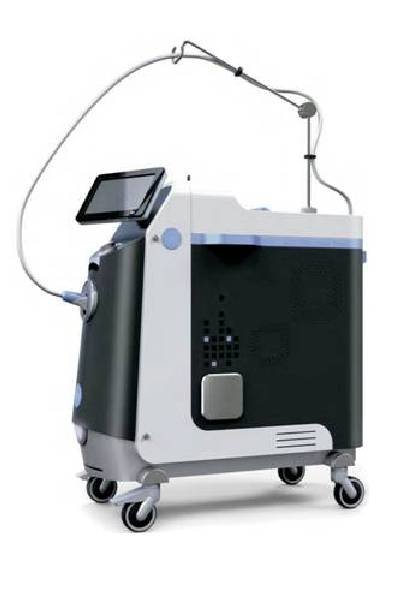

LONG PULSE ND-YAG LASER
Technical Specifications
Laser TypeLong Pulse Nd-Yag
Wave length1064 nm
Energy100J
Fluence3184mj/cm2
Pulse Width1ms-300ms
Pulse Rate1-15 Hz
Spot Size2,3,5,7,10,12,15,18,20,22mm
Aiming Beam5mW,650nm
Cooling TypeCryo Air Cooling 10.2”
DisplayTouchLCD
Physical Parameters
Electrical Rating230VAC,50Hz
Dimensions1000x910x380mm
Weight88Kgs
Optimized automatic temperature controlling system.
For long-pulsed operation (1064 nm), the water temperature can be adjusted automatically.
- Spot size can be divided very narrowly. It make user be very convenient for treatment.
Applications
Hair Removal&
Vascular Lesion.
Optional configuration: The unit is available with a combination of Alexandrite and Long Pulse Nd:YAG lasers.
