Introduction

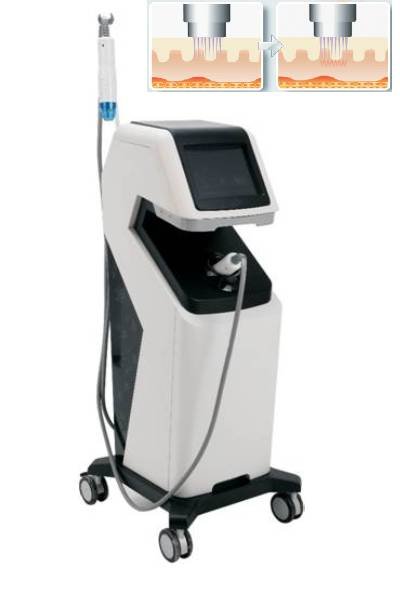

MNRF uses insulated microneedles to deliver radiofrequency energy during professional skin-treatment procedures. Its motor-driven needle system supports controlled insertion. Available device settings and physical parameters are listed below.
MICRO NEEDLING RF
Technical Specifications
Channels18 Independent Bipolar Channels
Frequency1MHz
Needle dimensions200µm
Spot Size15x15mm
Energy3mJ-8J (Eachelectrode)
Repeat time0.50-1.40s,OFF
Pulse duration1ms-100ms
Density level49 dots(needle 7x7)
Operating ModeInvasive & Non Invasive
User MemoryFour presets (M1-M4)
Needle Depth control0.1mm-4.0mm
Display8.4” LCD Color Touch Screen
Physical Parameters
Electrical requirement230V AC, 50 Hz
Dimensions270x430x1000mm
Weight20kg
Optimized treatment for the purpose of dermis coagulation shows an excellent effect in the treatment of gular suture,laugh line, philtrum wrinkle,etc.,which were difficult to treat with other devices.
The Unit has both ablative and non ablative tips.
