Introduction

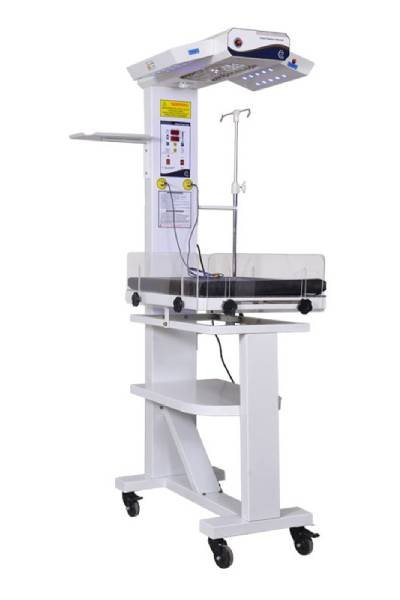

The Heal OCSP 102 is an open-care system with LED phototherapy for neonatal care. It includes a microprocessor-based controller for baby and air temperature, visual fault alarms, and an attached phototherapy unit for newborn jaundice management.
Technical Specifications
Key Features
- Self Test System
- Auto/Manual selection modes
- Air/Skin servo controlled system
- Double Digital Display for ACTUAL & SET temperature
- °C/°F settings
- Heater power indicator
- Feather touch keys for easy operation
- Key pad lock facility
- AIR/SKIN/MANUAL Modes
- Power failure alarm -Fault indication alarms for 1°C low/high, probe failures, high temperature cutoff, system failure, heater failure etc.,
Other Facilities
- IV stand provided
- Monitor tray provided
- Partition Tray to keep necessary things.
Baby & Air Probe
Baby & Air probe is made of highly sensitive sensor and is interchangeable, field calibration taken care of by software. The probe is made up of silicon sheathed cable, which allows easy cleaning.
Observation Lamp
LED based observation light focus on any area on the bed.
Heater
Single element CE approved ceramic heater placed in a parabolic reflector.
Baby Trolley
Phototherapy Unit
Medical grade Blue LEDs Either side 10 each: 1W x 20 LEDs
Recommended Environmental Specifications
- Operating temperature range :20°C to 33°C
- Storage temperature range:-25°C to 60°C
- Operating humidity range : 0 – 100% RH
Skin / Air Temperature Probe
- Range:28°C to 38°C
- Accuracy:+/-0.2°C within range
Resolution:0.1° C
- Probe interchangeability:+/-0.2°C (Servo)
- Heater output controllable from 0 to 100% in Manual mode (continuously variable)
Electrical Specifications
Electrical Supply : 230 V ± 10%, 50 Hz
Power consumption with Heater at max. Output:650W
Heal - OCSP
Physical Parameters
Baby Tray
Length700mm
Width500mm
Mattress Thickness25mm
- Over all
Length900mm
Width800mm
Height1900mm
Working level from ground900mm
Weight Approx40Kg
Castors75mm with 2 brake wheels and 2 non-brake wheels
