Introduction

The Heal ICI is an intensive-care baby incubator for neonatal care in the NICU. Its microprocessor-based temperature controller regulates air and skin temperature and provides visual fault alarms.

Technical Specifications

Skin / Air Probe

Skin/Air probe is made of highly sensitive sensor and inter changeable, field calibrations taken care of by software.The probe is made up of silicon sheathed cable,which allows easy cleaning.

The Electronic Controller

  • The controller is based on Microcomputerized System.
  • Large bright displays are easy to monitor and for viewing from a distance.
  • Digital display system provided to measure the Infant temperature. Air temperature and to set the required temperature.
  • Feather touch keys provided for easy
  • Bar graph LED system provided to indicate the heater output
  • Fault Indications with alarm for,
  • Baby probe failure
  • Air probe failure
  • 1°C temperature high
  • 1C temperature low
  • High temperature cut-off
  • Power failure
  • Single Wall Canopy with six port holes
  • Large Front door Load
  • Four Inlets for administration of O2, IV linesor Ventilator tubing
  • HeadUp/Down facility
  • X-Ray cassette sliding facility
  • Stainless Steel rust free Heater
  • Provision of an open shelf in the trolley
  • Hygrometer provided to indicate the % of humidity
  • IV Stand provided

Recommended Environmental Specifications

Operating temperature range: 20°C to 33°C

Storage temperature range:25°C to 60°C

Operating humidity range:0 to 100%RH

Skin Temperature Probe

Range:20°Cto38°C

Accuracy:+/-0.2°C within range

Resolution:0.1°C

Probe interchange ability:

+/-0.2°C(Servo)

Air Temperature Probe

Range:20°C to 38°C

Accuracy:+/-0.2°C within range

Resolution:0.1°C

Probe interchangeability:+/-0.2°C (Servo)

Electrical Specifications

ElectricalSupply :

230VAC,+/-10%,50Hz

Power consumption with Heater at max. output:

500W

Electrical Safety

As per IEC 60601-1-2 for medical equipments

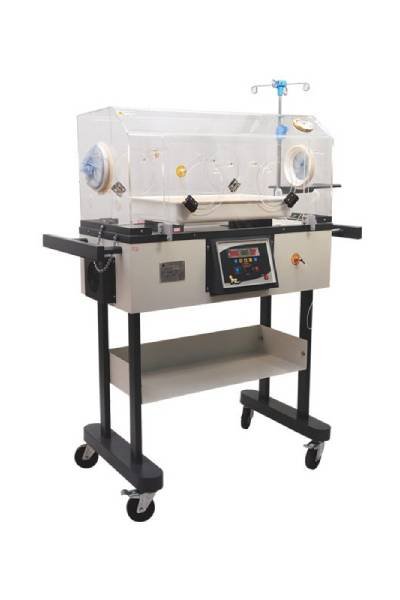

ici

Heal - ICI

Physical Parameters

Height1425mm

Depth585mm

Width945mm

Working level from ground900mm

Babytraytiltangleoneitherside:+/-8max

Weight60kg(Approx)

Castors100 mm with 2 brake wheels and 2 non-brake wheels

Mattress525x380x25mm
