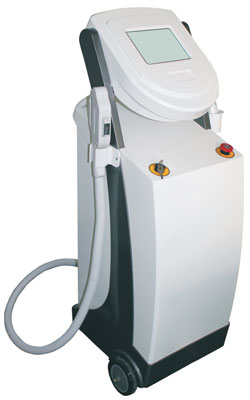

MULTI PLATFORM SYSTEM
(Elight + RF + Q-Switched Nd-Yag) |
|
| Description : |
|
This is new generation equipment with an advanced technology. This 3 in 1 machine has fixed handles, which avoids loose contact and breakages.
E-light (IPL with RF) for hair removal, skin rejuvenation, acne and vascular lesions.
Non ablative bipolar RF for cellulite reduction, wrinkle removal and skin tightening.
Q-switched Nd-Yag laser with three wavelengths 532, 1064 and 1320nm for all color tattoos, pigmentation and freckles etc., |
|
|
|
|
|
|
|
|
| TECHNICAL SPECIFICATIONS |
| Medium |
Elight + RF + Q-Switched Nd-Yag Laser |
| E light wavelength |
430nm, 480nm, 530nm, 560nm, 590nm,
640nm, 690nm |
| Spot size |
15 x 50mm |
| Elight power |
1-50J/cm2 |
| Pulse duration |
1 - 10 ms |
| Laser type |
Q-Switched Nd-Yag |
| Laser treatment head |
532nm/1064nm/1320nm(moppet head) |
| Laser Power |
300-1500mj |
| Laser frequency |
1-6Hz |
| Bipolar RF probes diameter |
20mm/28mm/35mm |
| RF energy |
01 - 25 J |
| Frequency |
10 MHz |
| RF discharge interval |
1-4s |
| Cooling system |
Semiconductor + Wind + Water |
| Electrical requirement |
230V AC, 50 Hz |
| Dimension |
1070 x 570 x 370 mm |
| Weight |
40 kg (Approx) |
|
|
