| TECHNICAL SPECIFICATIONS |
| Model |

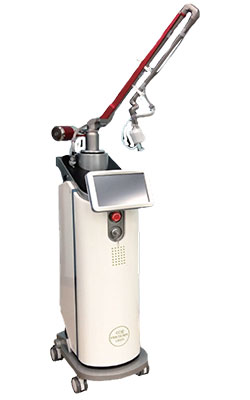

ArtXel |
| Laser Type |
CO2 Laser |
| Wavelength |
10.600nm
|
| Laser power |
1-40W
|
| Aiming Beam |
Diode Laser 655nm (5mw) : 1-10 Step |
| Surgical Mode |
Handpiece Type |
50mm, 100mm(Basic) |
| Laser Operation Mode |
| 1. CW 2. Normal Pulse 3. Super Pulse |
|
| 4. Super Pulse Continuous 5. Utra Pulse |
| 6. Smart Protocol (General Surgery/Dental Surgery) |
|
| Pulse Duration |
| Ultra Pulse : 90us-900us |
|
| Super Pulse : 1000us-3500us |
| Normal Pulse : 4ms-20ms |
|
| Repeat Time |
OFF, 2ms/500ms adjustable, 5ms, 10ms, 30ms,
50ms, 70ms, 100ms, 250ms, 500ms |
| Fractional Mode |
Beam shape |
Ultra Pulse |
| Density Level |
1-23 Step(x,y line); 9dots-4489 dots |
| Operation Mode |
Fractional Mode, Low Pain Fractional Mode |
| Beam Patterns |
Array, Grid, Random |
| Beam Size/Shape |
2x2mm - 20x20mm /  |
| Depth Level |
1-5 Step |
| Hand piece |
Fractional Handpiece(Galvanic Motor) |
| Repeat Time |
OFF, 0.5, 1.5, 2, 2.5ms |
| Electrical Requirements |
220V, 6A single phase, 50/60hz |
| Cooling System |
water cooling |
| Dimensions / Weight |
350x360x1200 / 52Kg |
| Display |
10.2 inches color LCD |
|
