LONG PULSE Nd YAG |
|
Description : |
|

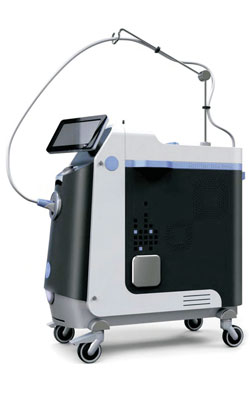

The Long Pulse Nd-Yag Laser equipped with fiber optic beam delivery system, this technology assures the precise laser light reaches the treatment area without energy loss. It is very convenient to use and the treatment time can be quite shorten. Cryo Air Cooling system helps to treat patients without pain and less downtime.
- Optimized automatic temperature controlling system.
- As per long pulsed (1064nm), temperature of water can be adjusted automatically.
- Spot size can be divided very narrowly. It make user be very convenient for treatment.
- Easier replacement of water and filter with one touch system.
|
|
|
|
|
|
|
|
|
TECHNICAL SPECIFICATIONS |
Laser Type |
Long Pulse Nd-Yag |
Wavelength |
1064 nm |
Energy |
100 J |
Fluence |
3184 mj/cm2 |
Pulse Width |
1 ms - 300 ms |
Pulse Rate |
1-15 Hz |
Spot Size |
2, 3, 5, 7, 10, 12, 15, 18, 20, 22 mm |
Aiming Beam |
5 mW, 650 nm |
Cooling Type |
Cryo Air Cooling |
Display |
10.2” Touch LCD |
Electrical Rating |
230V AC, 50 Hz |
Dimensions |
1000 x 910 x 380 mm |
Weight |
88 Kgs |
|
|
